BML-5 Pneumatic Diaphragm Pump
Model : BML-5

Product Description

1. This product is suitable for water-based ink printing, four plate printing machine, flexo and glue laminating machine, with liquid with particles, and the cycle of various flammable liquid delivery system.

2. Compressed air as a driving force, no spark, static electricity, and electromagnetic interference, can be directly used for flammable and explosive places.

3. Pump with anti-rust aluminum and stainless steel, special diaphragm ability of organic caustic.

4. Provincial air volume and strong self-absorption, easy to clean.

5. Application:  Widely used in the printing industry, electroplating works, ink painting, food, manufacturing, wastewater treatment, marine mining, electronic chemicals, ceramic construction, fuel handling, automotive and civil construction.

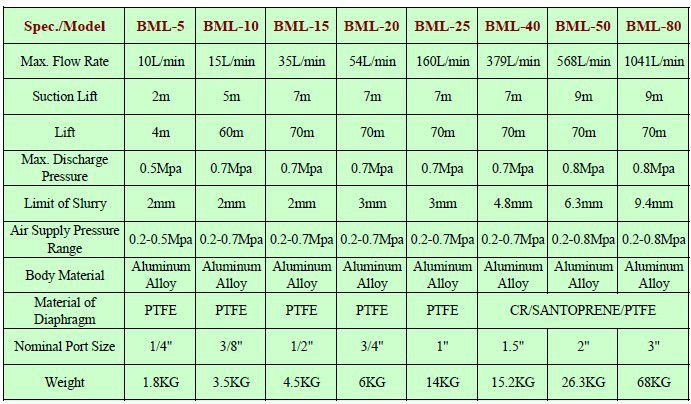

Technical Parameters


BML-5 Pneumatic Diaphragm Pump

Max. Flow Rate

10 L/minute

Screw Thread

NPT BSPT

Self-suction Lift

2 meters

Connection to Liquid Inlet

1/4″

Delivery Lift

4 meters

Connection to Liquid Outlet

1/4″

Max. Discharge Pressure

0.5 Mpa

Air Connection

1/4″

Max. Slurry

2 mm

Color

Silver, Yellow

Air Supply Press Range

0.2-0.5 Mpa

Type

A B

Body Material

Aluminum

Net Weight

1.8KG

Material of Diaphragm

PTFE

Gross Weight

3KG

Origin

GD, China

CTN Dimension

18*18*21 cm



Features

1. Explosion-proof, safe, efficient, environmentally friendly non-toxic.

2. Resistance to corrosion, no foam, versatility, simple installation.

3. Stable mechanical gas conversion system.

4. Improved the flow structure, ink will not caking.

5. Compact design, can work more than 5 years.
